48V40A 50A 60A MPPT Solar Charge Controller with Overload and Short Circuit Protection

Product Categories

Anhui Sunway New Energy Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

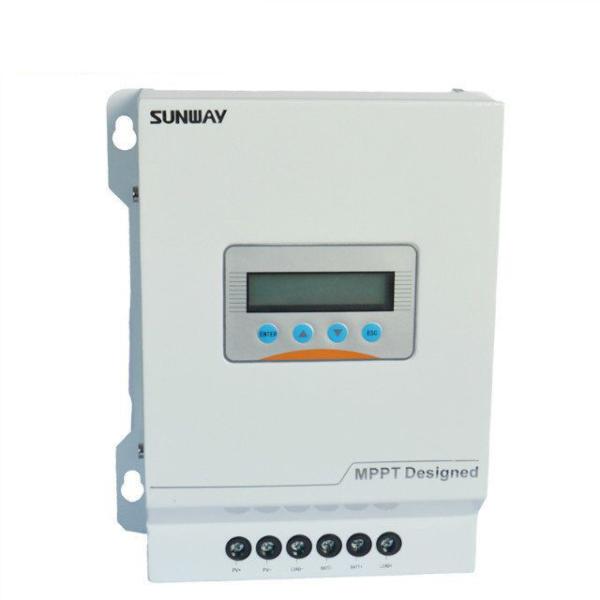

48V40A 50A 60A MPPT Solar Charge Controller with Overload and Short Circuit Protection

Name: 48V40A 50A 60A MPPT Solar Charge Controller with Overload and Short Circuit Protection
Brand: SUNEVER
Price: 95.50 USD

Cheap 48V40A 50A 60A MPPT Solar Charge Controller with Overload and Short Circuit Protection for sale

Place of Origin : Anhui, China

Brand Name : SUNEVER

Model Number : SSCM4860-100

Type : MPPT

Application : Charger Controller, Lighting Controller, Solar System Controller

Work Time (h) : 24

Max PV Power : 4000wp

Max PV Voltage : 150Vdc

Certificate : CE,IEC,ETL,EMC

Warranty : 1 years

Battery type : Lead-acid/Lithium/LiFePO4 Battery

Charge mode : MPPT Charging

Rated Current : 50A/60A/80A/100A

Display : LCD Screen

Protection : Short Circuit Overload Overvolt Overtemp

Communication : RS485/WiFi (optional)/GPRS (optional)

MPPT efficiency : 96.5%-99%

Rated Voltage : 12V/24V/36/48V Automatic Recognition

Protection level : IP32 (Indoor)

OEM & ODM : Acceptble

MOQ : 10 pieces

Price : $95.50/pieces 10-49 pieces

Contact Now

48V40A 50A 60A MPPT Solar Charge Controller with Overload and Short Circuit Protection

An intelligent Solar controller designed for the small photovoltaic off-grid power generation system, the controller adopts MPPT charging technology to automatically find the maximum power output of the photovoltaic module to charge the battery. At the same time, it has multiple protection functions, such as floating charge, overcharge, overcharge, etc. It can not only make full use of solar energy resources, but also ensure the safety and reliability of the battery pack. Meet the
technical requirements of the corresponding national standard GB / T 19064-2003

FEATURES of Solar charge controller

1) Adopt high-performance MCU, fully automatic control;
2) MPPT maximum power point tracking charging mode;
3) Low power consumption, 96% charging efficiency;
4) More comprehensive protection functions: battery overcharge
protection, overcharge automatic recovery, underpressure protection,
underpressure automatic recovery, anti-reverse connection protection,
anti-countercharge, overload protection, short circuit protection,
overtemperature protection, lightning protection, etc.;
5) Production in strict accordance with the national standards and
requirements, with stable performance;
6) High temperature resistance, high humidity resistance, salt spray
resistance, lightning protection, wide application scenarios.

Model	SSCM4860	SSCM4880	SSCM48100
PV modules Voc [V]	<150			150-180	300-360
Module arrays input [array]	1
Rated charging current [A]	60-100A
Rated battery bank voltage [V]	122448V auto detection
High voltage protection voltage	16.0/32.0/60.0
Overdischarge protection voltage	10.0/20.0/40.0
charge efficiency	≥96%
Charging method	MPPT Maximum Power Point Tracking
defencive function	Anti-reverse connection, short circuit protection, full disconnect and recovery, underpressure protection and recovery, etc
operating ambient temperature	-25℃~55℃
quiescent dissipation	≤4W
Communication	RS485/WIFI/GPRS
levels of protection	IP20

Package details

Q1:Are you a factory or trade company?

We are a factory who has more than 10 years experience in manufacturing; strong aftersale service team and technical support. Free design according to client requirements.

Q2:Whats the MOQ？ We have stock and semi-finished products with enough base materials for new sampleand order for all models, So small quantity order is accepted, it can meet your require.ment very well.

Q3:Why others price much cheaper? We try our best to ensure our quality to be the best one in the same level price products. We believe safety and effectiveness are the most important.

Q4:Can I have a sample for testing?

Yes, you are welcome to test samples before quantity order; Sample order will be sentout 2-3 days generally.

Q5:Can Iadd my logo on the products?

Yes,OEM and ODM are available for us. But you should send us the Trademark authori-zation letter.

Q6 :Do you have inspection procedures?

100% self-inspection before packing.
